Central coordinator between UI and backend services. More...

#include <controller.h>

Inheritance diagram for nsbaci::Controller:

Collaboration diagram for nsbaci::Controller:

Public Slots
void	onSaveRequested (nsbaci::types::File file, nsbaci::types::Text contents)
	Handles a request to save source code to a file.
void	onOpenRequested (nsbaci::types::File file)
	Handles a request to open and load a source file.
void	onCompileRequested (nsbaci::types::Text contents)
	Handles a request to compile source code.
void	onRunRequested ()
	Handles a request to load and prepare a compiled program for execution.
void	onStepRequested ()
	Executes a single instruction across any ready thread.
void	onStepThreadRequested (nsbaci::types::ThreadID threadId)
	Executes a single instruction on a specific thread.
void	onRunContinueRequested ()
	Starts or resumes continuous execution mode.
void	onPauseRequested ()
	Pauses continuous execution.
void	onResetRequested ()
	Resets the runtime to initial state.
void	onStopRequested ()
	Stops execution and unloads the program.
void	onInputProvided (const QString &input)
	Provides user input to the runtime.

Signals
void	saveFailed (std::vector< UIError > errors)
	Emitted when a file save operation fails.
void	saveSucceeded ()
	Emitted when a file save operation succeeds.
void	loadFailed (std::vector< UIError > errors)
	Emitted when a file load operation fails.
void	loadSucceeded (const QString &contents)
	Emitted when a file load operation succeeds.
void	compileFailed (std::vector< UIError > errors)
	Emitted when compilation fails.
void	compileSucceeded ()
	Emitted when compilation succeeds.
void	runStarted (const QString &programName)
	Emitted when a program is loaded and ready for execution.
void	runtimeStateChanged (bool running, bool halted)
	Emitted when the runtime execution state changes.
void	threadsUpdated (const std::vector< nsbaci::ui::ThreadInfo > &threads)
	Emitted when thread information needs to be updated in the UI.
void	variablesUpdated (const std::vector< nsbaci::ui::VariableInfo > &variables)
	Emitted when variable information needs to be updated in the UI.
void	outputReceived (const QString &output)
	Emitted when the runtime produces output (cout, writeln, etc.).
void	inputRequested (const QString &prompt)
	Emitted when the runtime needs user input (cin, read, etc.).

Public Member Functions
	Controller (nsbaci::services::FileService &&f, nsbaci::services::CompilerService &&c, nsbaci::services::RuntimeService &&r, std::unique_ptr< nsbaci::services::DrawingService > d, QObject *parent=nullptr)
	Constructs the Controller with all required services.
	~Controller ()=default
	Default destructor.

Detailed Description

Central coordinator between UI and backend services.

The Controller class is a QObject that serves as the main application controller, implementing the MVC pattern. It receives user actions through Qt slots, processes them using the specific backend services, and communicates results back to the UI through Qt signals.

The controller owns instances of all required services:

FileService: Handles file system operations
CompilerService: Compiles NsBaci source code to p-code
RuntimeService: Executes compiled programs with thread scheduling
DrawingService: Not yet implemented, but will be used as graphical API in the future

Execution modes supported:

Single-step execution: Execute one instruction at a time
Continuous execution: Run program with timer-based batching
Thread-specific stepping: Execute a single thread's instruction

Note: The controller uses a QTimer for continuous execution to maintain UI responsiveness during long-running programs.

Constructor & Destructor Documentation

◆ Controller()

nsbaci::Controller::Controller	(	nsbaci::services::FileService &&	f,
		nsbaci::services::CompilerService &&	c,
		nsbaci::services::RuntimeService &&	r,
		std::unique_ptr< nsbaci::services::DrawingService >	d,
		QObject *	parent = nullptr )

explicit

Constructs the Controller with all required services.

Takes ownership of the provided services via move semantics. Initializes the internal QTimer used for continuous execution mode.

Parameters

f	FileService instance for file operations.
c	CompilerService instance for compilation.
r	RuntimeService instance for program execution.
d	DrawingService instance for graphical output (unique_ptr).
parent	Optional parent QObject for Qt memory management.

◆ ~Controller()

nsbaci::Controller::~Controller ( )

default

Default destructor.

The QTimer is automatically cleaned up through Qt's parent-child system.

Member Function Documentation

◆ compileFailed

void nsbaci::Controller::compileFailed ( std::vector< UIError > errors )

signal

Emitted when compilation fails.

Parameters

errors List of compilation errors with line/column information.

Here is the caller graph for this function:

◆ compileSucceeded

void nsbaci::Controller::compileSucceeded ( )

signal

Emitted when compilation succeeds.

After this signal, the compiled program is ready to be loaded into the runtime via onRunRequested().

Here is the caller graph for this function:

◆ inputRequested

void nsbaci::Controller::inputRequested ( const QString & prompt )

signal

Emitted when the runtime needs user input (cin, read, etc.).

Parameters

prompt The prompt message to display to the user.

Here is the caller graph for this function:

◆ loadFailed

void nsbaci::Controller::loadFailed ( std::vector< UIError > errors )

signal

Emitted when a file load operation fails.

Parameters

errors List of errors describing what went wrong.

Here is the caller graph for this function:

◆ loadSucceeded

void nsbaci::Controller::loadSucceeded ( const QString & contents )

signal

Emitted when a file load operation succeeds.

Parameters

contents The loaded file contents as a QString.

Here is the caller graph for this function:

◆ onCompileRequested

void nsbaci::Controller::onCompileRequested ( nsbaci::types::Text contents )

slot

Handles a request to compile source code.

Compiles the provided source code into p-code instructions. On success, the instructions are stored in the CompilerService ready to be loaded into the runtime.

Parameters

contents The BACI source code to compile.

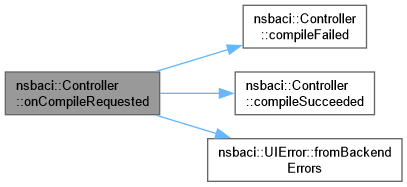

Here is the call graph for this function:

◆ onInputProvided

void nsbaci::Controller::onInputProvided ( const QString & input )

slot

Provides user input to the runtime.

Called when the user enters input in response to an inputRequested signal. If the program was running continuously before the input request, execution is automatically resumed.

Parameters

input The user-provided input string.

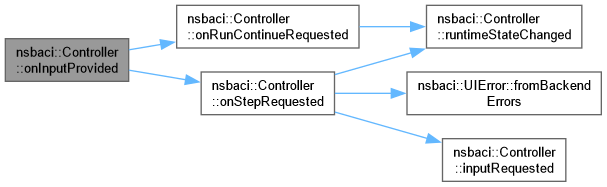

Here is the call graph for this function:

◆ onOpenRequested

void nsbaci::Controller::onOpenRequested ( nsbaci::types::File file )

slot

Handles a request to open and load a source file.

Parameters

file	The file path to load.

Here is the call graph for this function:

◆ onPauseRequested

void nsbaci::Controller::onPauseRequested ( )

slot

Pauses continuous execution.

Stops the execution timer but preserves program state for later resumption.

Here is the call graph for this function:

◆ onResetRequested

void nsbaci::Controller::onResetRequested ( )

slot

Resets the runtime to initial state.

Clears all thread state and memory but keeps the loaded program. The program can be re-run from the beginning.

Here is the call graph for this function:

◆ onRunContinueRequested

void nsbaci::Controller::onRunContinueRequested ( )

slot

Starts or resumes continuous execution mode.

Begins timer-based execution where batches of instructions are executed periodically, allowing the UI to remain responsive.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ onRunRequested

void nsbaci::Controller::onRunRequested ( )

slot

Handles a request to load and prepare a compiled program for execution.

Takes the compiled instructions and symbol table from the CompilerService and loads them into the RuntimeService. Sets up the output callback for forwarding runtime output to the UI.

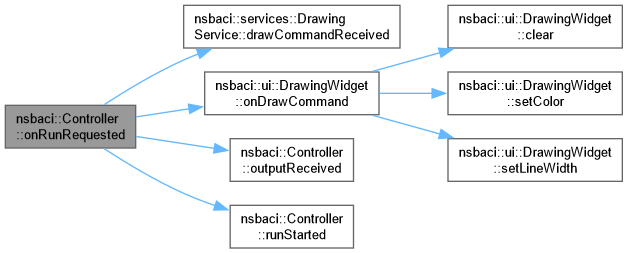

Here is the call graph for this function:

◆ onSaveRequested

void nsbaci::Controller::onSaveRequested	(	nsbaci::types::File	file,
		nsbaci::types::Text	contents )

slot

Handles a request to save source code to a file.

Parameters

file	The target file path.
contents	The source code content to save.

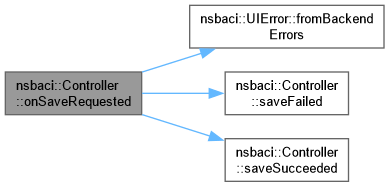

Here is the call graph for this function:

◆ onStepRequested

void nsbaci::Controller::onStepRequested ( )

slot

Executes a single instruction across any ready thread.

The scheduler picks the next thread to run and executes one instruction. Updates the UI with new thread and variable states.

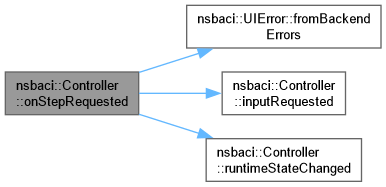

Here is the call graph for this function:

Here is the caller graph for this function:

◆ onStepThreadRequested

void nsbaci::Controller::onStepThreadRequested ( nsbaci::types::ThreadID threadId )

slot

Executes a single instruction on a specific thread.

Parameters

threadId The ID of the thread to step.

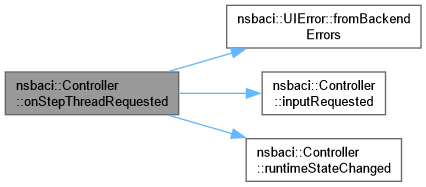

Here is the call graph for this function:

◆ onStopRequested

void nsbaci::Controller::onStopRequested ( )

slot

Stops execution and unloads the program.

Completely stops the runtime and marks no program as loaded.

◆ outputReceived

void nsbaci::Controller::outputReceived ( const QString & output )

signal

Emitted when the runtime produces output (cout, writeln, etc.).

Parameters

output The output string to display in the console.

Here is the caller graph for this function:

◆ runStarted

void nsbaci::Controller::runStarted ( const QString & programName )

signal

Emitted when a program is loaded and ready for execution.

Parameters

programName The name of the loaded program.

Here is the caller graph for this function:

◆ runtimeStateChanged

void nsbaci::Controller::runtimeStateChanged	(	bool	running,
		bool	halted )

signal

Emitted when the runtime execution state changes.

Parameters

running	True if the program is currently executing continuously.
halted	True if the program has terminated (reached Halt instruction).

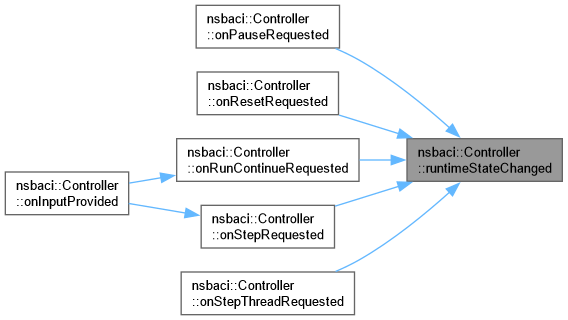

Here is the caller graph for this function:

◆ saveFailed

void nsbaci::Controller::saveFailed ( std::vector< UIError > errors )

signal

Emitted when a file save operation fails.

Parameters

errors List of errors describing what went wrong.

Here is the caller graph for this function:

◆ threadsUpdated

void nsbaci::Controller::threadsUpdated ( const std::vector< nsbaci::ui::ThreadInfo > & threads )

signal

Emitted when thread information needs to be updated in the UI.

Parameters

threads Current state of all threads including PC, state, and current instruction.

◆ variablesUpdated

void nsbaci::Controller::variablesUpdated ( const std::vector< nsbaci::ui::VariableInfo > & variables )

signal

Emitted when variable information needs to be updated in the UI.

Parameters

variables Current values of all program variables.

The documentation for this class was generated from the following files:
