nsbaci::services::RuntimeService Class Reference

Service that manages program execution. More...

#include <runtimeService.h>

Public Member Functions
	RuntimeService ()=default
	Default constructor creates an uninitialized service.
	RuntimeService (std::unique_ptr< runtime::Interpreter > i, std::unique_ptr< runtime::Scheduler > s)
	Constructs a RuntimeService with interpreter and scheduler.
	~RuntimeService ()=default
	Default destructor.
	RuntimeService (const RuntimeService &)=delete
RuntimeService &	operator= (const RuntimeService &)=delete
	RuntimeService (RuntimeService &&)=default
RuntimeService &	operator= (RuntimeService &&)=default
void	loadProgram (runtime::Program &&p)
	Loads a compiled program for execution.
void	reset ()
	Resets the runtime to initial state.
RuntimeResult	step ()
	Executes a single instruction for any ready thread.
RuntimeResult	stepThread (nsbaci::types::ThreadID threadId)
	Executes a single instruction for a specific thread.
RuntimeResult	run (size_t maxSteps=0)
	Runs the program until halted, error, or step limit.
void	pause ()
	Pauses continuous execution.
RuntimeState	getState () const
	Gets the current runtime state.
bool	isHalted () const
	Checks if the program has finished execution.
size_t	threadCount () const
	Gets the number of active threads.
const std::vector< runtime::Thread > &	getThreads () const
	Gets all threads from the scheduler.
const runtime::Program &	getProgram () const
	Gets the loaded program.
void	provideInput (const std::string &input)
	Provides input to the runtime.
bool	isWaitingForInput () const
	Checks if the runtime is waiting for user input.
void	setOutputCallback (runtime::OutputCallback callback)
	Sets the callback for output operations.
void	setDrawingCallback (runtime::DrawingCallback callback)
	Sets the callback for drawing operations.

Detailed Description

Service that manages program execution.

The service is move-only to ensure single ownership of the interpreter and scheduler components.

Usage example:

RuntimeService rs(std::make_unique<NsbaciInterpreter>(),
                  std::make_unique<NsbaciScheduler>());
rs.loadProgram(std::move(compiledProgram));
rs.setOutputCallback([](const std::string& out) { std::cout << out; });

while (!rs.isHalted()) {
  auto result = rs.step();
  if (result.needsInput) {
    rs.provideInput(getUserInput());
  }
}

Constructor & Destructor Documentation

RuntimeService() [1/2]

nsbaci::services::RuntimeService::RuntimeService ( )

default

Default constructor creates an uninitialized service.

A service created this way must have its interpreter and scheduler set before use, typically via move assignment from a factory-created instance.

Here is the call graph for this function:

Here is the caller graph for this function:

RuntimeService() [2/2]

nsbaci::services::RuntimeService::RuntimeService	(	std::unique_ptr< runtime::Interpreter >	i,
		std::unique_ptr< runtime::Scheduler >	s )

Constructs a RuntimeService with interpreter and scheduler.

Parameters

i	Unique pointer to the interpreter implementation.
s	Unique pointer to the scheduler implementation.

Member Function Documentation

getProgram()

const runtime::Program & nsbaci::services::RuntimeService::getProgram

(

)

const

Gets the loaded program.

Returns

Const reference to the program for accessing instructions and memory.

Here is the caller graph for this function:

getState()

RuntimeState nsbaci::services::RuntimeService::getState

(

)

const

Gets the current runtime state.

Returns

The current RuntimeState value.

Here is the caller graph for this function:

getThreads()

const std::vector< runtime::Thread > & nsbaci::services::RuntimeService::getThreads

(

)

const

Gets all threads from the scheduler.

Returns

Const reference to the threads vector for UI display.

Here is the caller graph for this function:

isHalted()

bool nsbaci::services::RuntimeService::isHalted

(

)

const

Checks if the program has finished execution.

Returns

True if state is Halted.

Here is the caller graph for this function:

isWaitingForInput()

bool nsbaci::services::RuntimeService::isWaitingForInput

(

)

const

Checks if the runtime is waiting for user input.

Returns

True if a Read instruction is blocking execution.

Here is the caller graph for this function:

loadProgram()

void nsbaci::services::RuntimeService::loadProgram

(

runtime::Program &&

p

)

Loads a compiled program for execution.

Initializes the runtime with the program's instructions, symbol table, and memory. Creates the initial main thread and sets state to Paused ready for execution.

Parameters

p	The compiled program to load (which must be moved into the service).

Here is the call graph for this function:

Here is the caller graph for this function:

pause()

void nsbaci::services::RuntimeService::pause

(

)

Pauses continuous execution.

Only affects state if currently Running; changes state to Paused.

Here is the caller graph for this function:

provideInput()

void nsbaci::services::RuntimeService::provideInput

(

const std::string &

input

)

Provides input to the runtime.

Called when the user provides input in response to a Read instruction. The input is stored and will be consumed on the next execution step.

Parameters

input

The user-provided input string.

Here is the caller graph for this function:

reset()

void nsbaci::services::RuntimeService::reset

(

)

Resets the runtime to initial state.

Clears all threads, resets memory, and sets state to Idle. The program must be reloaded before execution can continue.

Here is the call graph for this function:

Here is the caller graph for this function:

run()

RuntimeResult nsbaci::services::RuntimeService::run

(

size_t

maxSteps = 0

)

Runs the program until halted, error, or step limit.

Executes instructions continuously until:

• The program halts (reaches Halt instruction)
• An error occurs
• The maximum step count is reached
• Input is required

Parameters

maxSteps

Maximum instructions to execute (0 = unlimited).

Returns

RuntimeResult with final execution state.

Here is the call graph for this function:

Here is the caller graph for this function:

setDrawingCallback()

void nsbaci::services::RuntimeService::setDrawingCallback

(

runtime::DrawingCallback

callback

)

Sets the callback for drawing operations.

The callback is invoked whenever the program performs drawing operations (setColor, drawCircle, fillRect, etc.).

Parameters

callback

Function to call with DrawCommand objects.

Here is the caller graph for this function:

setOutputCallback()

void nsbaci::services::RuntimeService::setOutputCallback

(

runtime::OutputCallback

callback

)

Sets the callback for output operations.

The callback is invoked whenever the program produces output (Write, Writeln, WriteRawString instructions).

Parameters

callback

Function to call with output strings.

Here is the caller graph for this function:

step()

RuntimeResult nsbaci::services::RuntimeService::step

(

)

Executes a single instruction for any ready thread.

The scheduler picks the next thread to run and the interpreter executes one instruction from that thread's current position.

Returns

RuntimeResult with execution outcome, output, and I/O state.

Here is the call graph for this function:

Here is the caller graph for this function:

stepThread()

RuntimeResult nsbaci::services::RuntimeService::stepThread

(

nsbaci::types::ThreadID

threadId

)

Executes a single instruction for a specific thread.

Allows targeted debugging by stepping only the specified thread.

Parameters

threadId

The ID of the thread to step.

Returns

RuntimeResult with execution outcome.

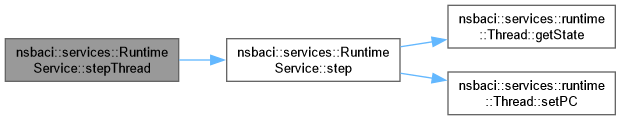

Here is the call graph for this function:

Here is the caller graph for this function:

threadCount()

size_t nsbaci::services::RuntimeService::threadCount

(

)

const

Gets the number of active threads.

Returns

Count of threads in the scheduler.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• runtimeService.h
• runtimeService.cpp
