nsbaci::services::runtime::NsbaciScheduler Class Reference

BACI-specific implementation of the Scheduler. More...

#include <nsbaciScheduler.h>

Inheritance diagram for nsbaci::services::runtime::NsbaciScheduler:

Collaboration diagram for nsbaci::services::runtime::NsbaciScheduler:

Public Member Functions
Thread *	pickNext () override
	Pick the next thread to run.
void	addThread (Thread thread) override
	Add a new thread to the scheduler.
void	blockCurrent () override
	Block the currently running thread.
void	blockOnSemaphore (uint32_t semaphoreAddr) override
	Block current thread on a semaphore.
size_t	unblockSemaphore (uint32_t semaphoreAddr) override
	Unblock threads waiting on a semaphore.
void	unblock (nsbaci::types::ThreadID threadId) override
	Move a thread from blocked to ready state.
void	yield () override
	Yield the current thread (move to back of ready queue).
void	terminateCurrent () override
	Terminate the currently running thread.
bool	hasThreads () const override
	Check if there are any threads left to run.
Thread *	current () override
	Get the currently running thread.
void	clear () override
	Clear all threads and reset scheduler state.
void	unblockIO () override
	Move all I/O waiting threads back to ready queue.
const std::vector< Thread > &	getThreads () const override
	Get all threads managed by the scheduler.
void	blockOnCoend (int32_t expectedThreads) override
	Block current thread on coend (waiting for spawned threads).
void	checkCoendUnblock () override
	Check if coend-blocked threads should be unblocked.

Additional Inherited Members
Protected Attributes inherited from nsbaci::services::runtime::Scheduler
std::vector< Thread >	threads
	All threads owned by scheduler.
std::vector< size_t >	readyQueue
	Indices of ready threads.
std::vector< size_t >	blockedQueue
	Indices of blocked threads.
std::vector< size_t >	ioQueue
	Indices of I/O waiting threads.
std::optional< size_t >	runningIndex
	Index of currently running thread.
std::unordered_map< uint32_t, std::vector< size_t > >	semaphoreQueues
	Map from semaphore address to list of waiting thread indices.
std::vector< std::pair< size_t, int32_t > >	coendQueue
	Threads waiting at coend, with their expected thread counts.

Detailed Description

BACI-specific implementation of the Scheduler.

NsbaciScheduler implements a round-robin scheduling algorithm with support for blocked, ready, running, and I/O waiting states. Threads are selected randomly from the ready queue to simulate non-deterministic concurrent execution.

Member Function Documentation

addThread()

void nsbaci::services::runtime::NsbaciScheduler::addThread ( Thread thread )

overridevirtual

Add a new thread to the scheduler.

Parameters

thread

The thread to add.

Implements nsbaci::services::runtime::Scheduler.

Here is the call graph for this function:

blockCurrent()

void nsbaci::services::runtime::NsbaciScheduler::blockCurrent ( )

overridevirtual

Block the currently running thread.

Implements nsbaci::services::runtime::Scheduler.

Here is the call graph for this function:

blockOnCoend()

void nsbaci::services::runtime::NsbaciScheduler::blockOnCoend ( int32_t expectedThreads )

overridevirtual

Block current thread on coend (waiting for spawned threads).

Parameters

expectedThreads

Number of threads that should terminate.

Implements nsbaci::services::runtime::Scheduler.

Here is the call graph for this function:

blockOnSemaphore()

void nsbaci::services::runtime::NsbaciScheduler::blockOnSemaphore ( uint32_t semaphoreAddr )

overridevirtual

Block current thread on a semaphore.

Parameters

semaphoreAddr

The address of the semaphore.

Implements nsbaci::services::runtime::Scheduler.

Here is the call graph for this function:

checkCoendUnblock()

void nsbaci::services::runtime::NsbaciScheduler::checkCoendUnblock ( )

overridevirtual

Check if coend-blocked threads should be unblocked.

Called after a thread terminates.

Implements nsbaci::services::runtime::Scheduler.

Here is the caller graph for this function:

clear()

void nsbaci::services::runtime::NsbaciScheduler::clear ( )

overridevirtual

Clear all threads and reset scheduler state.

Implements nsbaci::services::runtime::Scheduler.

current()

Thread * nsbaci::services::runtime::NsbaciScheduler::current ( )

overridevirtual

Get the currently running thread.

Returns

Pointer to current thread, or nullptr if none.

Implements nsbaci::services::runtime::Scheduler.

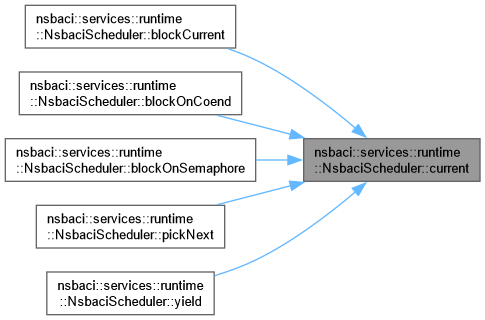

Here is the caller graph for this function:

getThreads()

const std::vector< Thread > & nsbaci::services::runtime::NsbaciScheduler::getThreads ( ) const

overridevirtual

Get all threads managed by the scheduler.

Returns

Const reference to the threads vector.

Implements nsbaci::services::runtime::Scheduler.

hasThreads()

bool nsbaci::services::runtime::NsbaciScheduler::hasThreads ( ) const

overridevirtual

Check if there are any threads left to run.

Returns

True if there are threads in any queue.

Implements nsbaci::services::runtime::Scheduler.

pickNext()

Thread * nsbaci::services::runtime::NsbaciScheduler::pickNext ( )

overridevirtual

Pick the next thread to run.

Returns

Pointer to the next thread, or nullptr if no threads are ready.

Implements nsbaci::services::runtime::Scheduler.

Here is the call graph for this function:

terminateCurrent()

void nsbaci::services::runtime::NsbaciScheduler::terminateCurrent ( )

overridevirtual

Terminate the currently running thread.

Implements nsbaci::services::runtime::Scheduler.

Here is the call graph for this function:

unblock()

void nsbaci::services::runtime::NsbaciScheduler::unblock ( nsbaci::types::ThreadID threadId )

overridevirtual

Move a thread from blocked to ready state.

Parameters

threadId

The ID of the thread to unblock.

Implements nsbaci::services::runtime::Scheduler.

unblockIO()

void nsbaci::services::runtime::NsbaciScheduler::unblockIO ( )

overridevirtual

Move all I/O waiting threads back to ready queue.

Called when input becomes available.

Implements nsbaci::services::runtime::Scheduler.

unblockSemaphore()

size_t nsbaci::services::runtime::NsbaciScheduler::unblockSemaphore ( uint32_t semaphoreAddr )

overridevirtual

Unblock threads waiting on a semaphore.

Parameters

semaphoreAddr

The address of the semaphore.

Returns

Number of threads unblocked.

Implements nsbaci::services::runtime::Scheduler.

yield()

void nsbaci::services::runtime::NsbaciScheduler::yield ( )

overridevirtual

Yield the current thread (move to back of ready queue).

Implements nsbaci::services::runtime::Scheduler.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• nsbaciScheduler.h
• nsbaciScheduler.cpp
